Thermoplastic membranes: Changing the low-slope roofing market

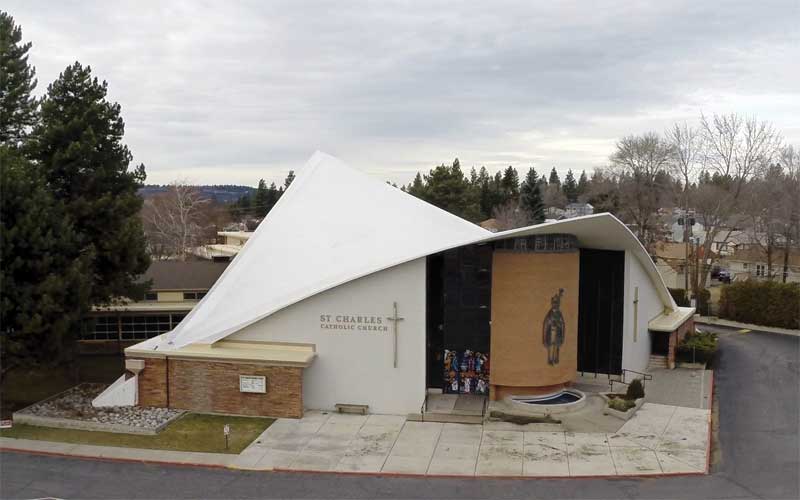

The reroofing of the St. Charles Parish and School in Spokane, Washington, with a reinforced, 1.5-mm (60-mil) TPO membrane preserves an important era in the evolution of modern architecture, featuring an irregularly shaped roof. Photo courtesy St. Charles Parish & School
The reroofing of the St. Charles Parish and School in Spokane, Washington, with a reinforced, 1.5-mm (60-mil) TPO membrane preserves an important era in the evolution of modern architecture, featuring an irregularly shaped roof.
Photo courtesy St. Charles Parish & School

Product testing

TPO continues to be known as the “newest” membrane for commercial low-slope roofing, but it is far from unproven. ASTM D6878, Standard Specification for Thermoplastic Polyolefin-Based Sheet Roofing, first published in 2003, has continually updated TPO performance requirements. Separately, ASTM D4434, Standard Specification for Poly(Vinyl Chloride)Sheet Roofing, covers PVC membranes and was first published in 1985. It has seen many improvements over the past 30 years. ASTM D6754/D6754M – 15, Standard Specification for Ketone Ethylene Ester Based Sheet Roofing, is used for PVC ketone ethylene ester- (KEE) modified membranes manufactured using a hot melt vinyl coating technology with DuPont Elvaloy as the foundation for the vinyl compound. Updates to each of these product standards have included strengthening the weathering resistance requirements which have been incorporated into their respective standards and
into individual roofing manufacturers’ performance specifications.

TPO and PVC membranes are known to resist the hydrostatic pressure resulting from standing or “ponding” water.

Additionally, they are not affected by freeze and thaw cycles. However, similar to other roof membranes, TPO and PVC weather from the effects of ultraviolet (UV) light and heat. For this reason, accelerated aging is conducted to expose TPO and PVC membranes to conditions often far in excess of what is experienced during rooftop use but in shorter (accelerated) time periods.

Thermoplastic membranes are not a “cure-all”

While the popularity and performance characteristics of these membranes are clear, every thermoplastic membrane exhibits strengths and weaknesses. While thermoplastic membranes represent more than 50 per cent of the low-slope membrane roofing market in 2018, there are installations where their traditional use is not recommended.

All thermoplastic membranes rely on one layer of roofing material to waterproof the building. More traditional roofing options in Canada, such as built-up roofing (BUR) and modified bitumen, offer redundancy in the form of multiple layers of roof membrane protection. Some asphalt-based product specifications also offer greater puncture resistance and are more forgiving of rooftop abuse than standard thermoplastic membranes.

Another installation where care should be taken is one with high heat loading combined with concentrated exposure to sunlight, although this is less of a concern in northern climates. Most roofing materials degrade over time when exposed to heat and UV and their long-term performance depends on formulation and in-situ conditions, so exposure to high temperatures and high UV, such as south- and west-facing walls in extremely hot climates, may warrant either a thicker membrane or a membrane formulated for such severe conditions.

As mentioned previously, thermoplastic membranes are often specified with polyiso insulation. As one of North America’s most widely used, readily available, and cost-effective insulation products, polyiso has been cited by the U.S. Environmental Protection Agency (EPA) for its responsible impact on the environment. However, according to some sources, the insulating performance of polyiso insulation is degraded at colder temperatures. Questions about the cold-weather performance of polyiso should initially be directed to pima.org.

Regarding the environmental impact of using thermoplastic membranes, manufacturers have the opportunity to publish an environmental product declaration (EPD) in accordance with the International Organization for Standardization (ISO) 14025, Environmental labels and declarations – Type III environmental declarations – Principles and procedures. EPDs rely on life-cycle assessment (LCA) to provide information on a number of environmental impacts of products over their life cycle.

Thermoplastic membranes are also suitable for roofing upgrades on existing low-energy buildings, although this is highly dependent on building location, construction, and interior conditions.
In colder climates, cooling load is less of a concern. In fact, building scientist John Straube does not recommend using light-coloured roofing materials in colder climates, as they reduce the potential for drying of condensation that may build up within the roof assembly.

Regarding condensation, a hydrothermal analysis should be conducted using a program such as WUFI to determine the condensation potential of the specific roofing design using the expected interior and exterior conditions for the building and location.

WUFI allows realistic calculation of the transient coupled one-dimensional heat and moisture transport in multilayer building components exposed to natural weather. It is based on the newest findings regarding vapour diffusion and liquid transport in building materials and has been validated by detailed comparison with measurements obtained in the laboratory and on outdoor testing fields. In general, the building design should not show increasing levels of condensation versus time. If it does it should be revised to prevent this situation.

Conclusion

Thermoplastic membranes can meet a variety of different building requirements by offering a range of options in new construction, retrofit, and tear-off/reroofing situations. Single-ply membranes, including thermoplastics, are particularly suited to “big box” applications due in part to the availability of large 3 x 30 m (10 x 100 ft) sheets using some of the labour-saving techniques mentioned earlier. Thermoplastic membranes also offer excellent resistance to UV degradation and ozone and chemical exposure.

It is also important to note these high-performance thermoplastic roofing membranes are compatible with the latest rooftop technologies, including solar arrays and vegetative roofing. Given the wide variety of installation options available, it is easy to understand why these membranes have continued to gain in use and provide long-term performance for building owners.

Mike Ennis, RRC, joined the Single Ply Roofing Industry (SPRI) trade association in 1993. He has chaired various SPRI committees and task forces, and served as president from 2004 to 2006. He became the group’s technical director the following year. Ennis can be reached at info@spri.org.
