ICF Anchor
Blok-Lok LTD
03 11 19 Insulating Concrete Forming

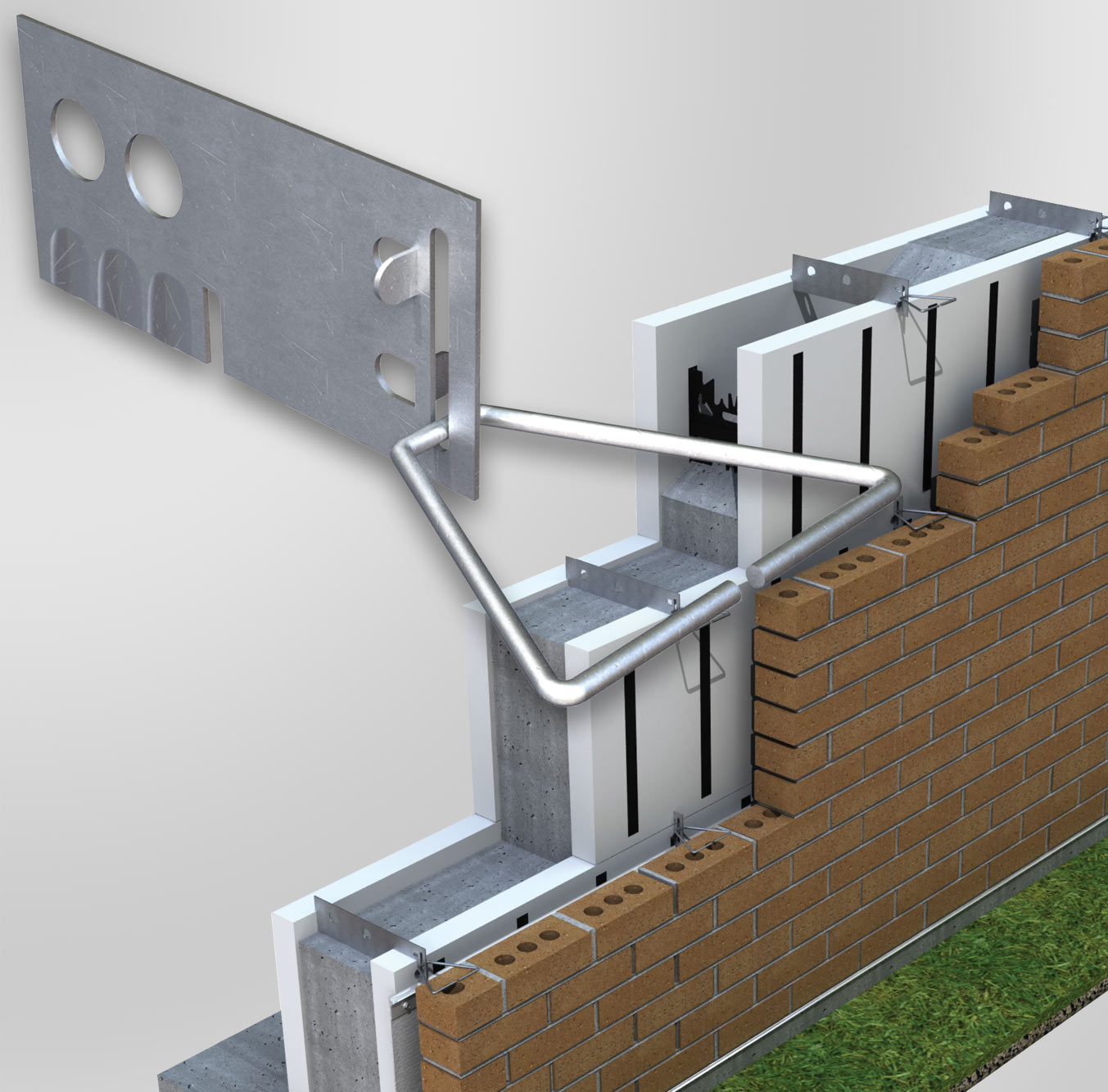

The ICF Masonry Anchor, an innovative new “through form” anchor, is a wire tie and plate combination system which provides adjustability, minimal free-play, strength, stiffness, positive connection, corrosion-resistance, and is test rated. The anchor plate is designed to accommodate brick, stone, or precast panels. Cast in place installation.
- It utilizes a 4.76 mm (3/16 in.) diameter Flex-O-Lok tie as a veneer connector.
- The anchor has a 50 mm (2 in.) vertical slot for alignment eccentricities, which can occur between veneer and backup.
- Base Plate: 16 gauge (1.5 mm).
- Length to accommodate various insulation thicknesses.
ICF Anchor
Blok-Lok LTD
03 11 19 Insulating Concrete Forming
The ICF Masonry Anchor, an innovative new “through form” anchor, is a wire tie and plate combination system which provides adjustability, minimal free-play, strength, stiffness, positive connection, corrosion-resistance, and is test rated. The anchor plate is designed to accommodate brick, stone, or precast panels. Cast in place installation.
- It utilizes a 4.76 mm (3/16 in.) diameter Flex-O-Lok tie as a veneer connector.
- The anchor has a 50 mm (2 in.) vertical slot for alignment eccentricities, which can occur between veneer and backup.
- Base Plate: 16 gauge (1.5 mm).
- Length to accommodate various insulation thicknesses.
Additional Information
ICF Anchor SystemVeneer Anchors
