Adaptive reuse for commercial buildings

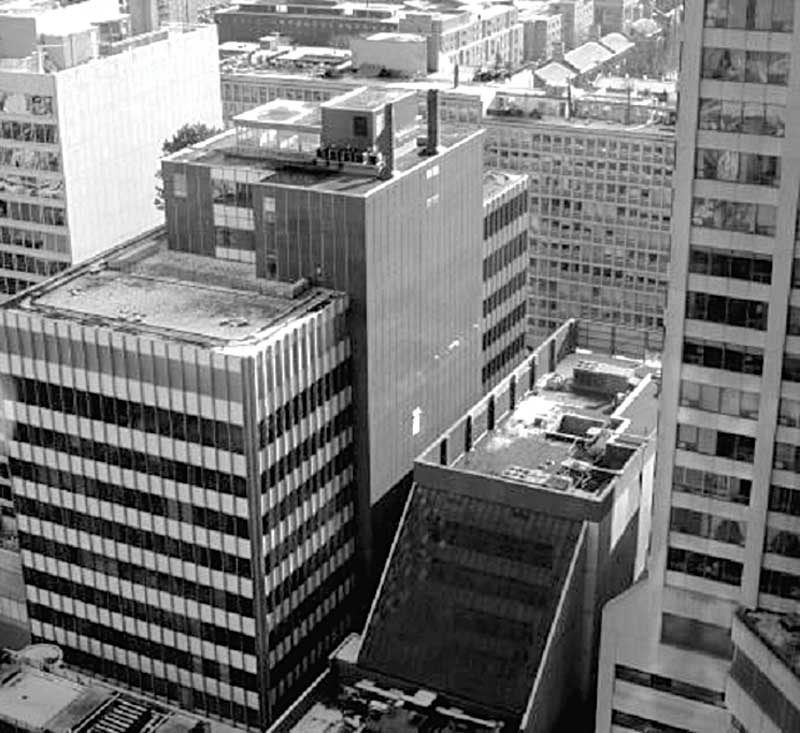

The design of the complicated project preserved the heritage penthouse while adding seven floors of new penthouses above, and two floors below, the original roofline. Photo © Brian Curtner
The design of the complicated project preserved the heritage penthouse while adding seven floors of new penthouses above, and two floors below, the original roofline.
Photo © Brian Curtner

The building was vacant during the retrofit, and its building systems were gutted and later reintroduced, allowing the building to be reconfigured with an incredible degree of efficiency. Strategic design moves included reducing the mechanical system’s spatial requirements to allow the reclamation of valuable floor space. Office floors were divided into smaller zones with local thermal adjustability, allowing occupants to have direct control over their environment.

Mechanical infrastructure was kept to the centre of the plan, expanding gross floor area, resulting in greater tenant flexibility. The existing structural system was also retained, allowing a significant reduction in the quantity of materials needed for demolition and fabrication. Raising the ceilings at the perimeter allowed daylight to penetrate deep into the building.

As the original building was less then 50 years old, this successful transformation is a key example of how adaptive reuse can be a smart tactic for projects of any age.

130 Bloor Street West
The most complex in adaptive reuse projects was 130 Bloor Street West in Toronto, demonstrating the sky is the limit when creative problem solving is applied to a unique and challenging site.

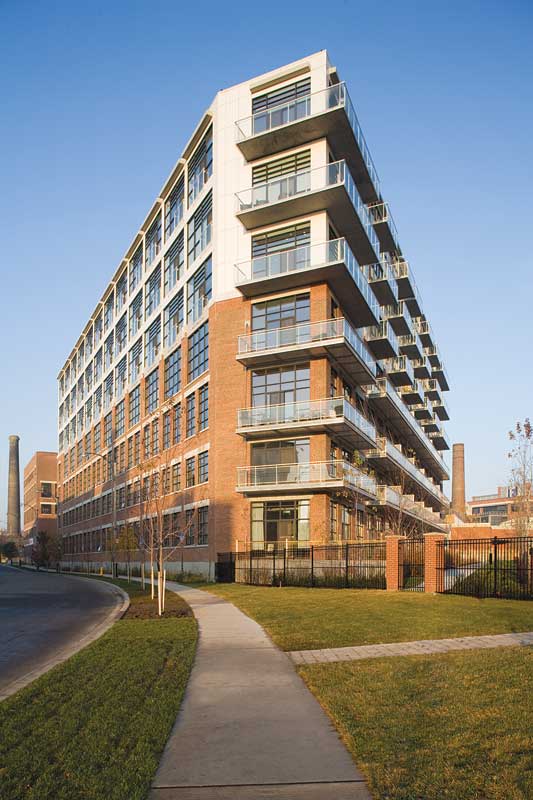

The conversion of the Irwin Toy Factory, located in downtown Toronto’s Liberty Village, was a catalyst for the transformation of the heavily downtown industrialized area. Photo © Ben Rahn
The conversion of the Irwin Toy Factory, located in downtown Toronto’s Liberty Village, was a catalyst for the transformation of the heavily downtown industrialized area.
Photo © Ben Rahn

The restoration and expansion of the 1960s office building included:

  • a two-storey heritage-listed penthouse;
  • the addition of 15 luxury condominium apartments atop 12,000 m2 (129,167 sf) of office space; and
  • 2000 m2 (21,528 sf) of high-end retail space at street level.

The design of the complex project preserved the heritage penthouse while adding seven floors of new penthouses above, and two floors below, the original roofline. Extensive renovations took place on the office floors; existing underground parking was reconfigured to be shared by commercial and residential tenants.

During construction, the offices and retail area below remained completely operational. The project’s complexity was similar to performing ‘structural gymnastics.’ It was challenging, to say the least—akin to performing open-heart surgery while the patient is awake. Adding a new building above an existing one, while keeping the building operational and the people working in it safe, was a challenge that required a lot of creativity.

Reinforcing the existing structure to meet new seismic requirements and the additional loads of the new floors involved structural interventions going into at least four areas on each floor to add steel plates and cross-bracing. The phased program impacted existing leases and involved multiple temporary relocation of staff, services, and fire exits to allow for the expansion above.

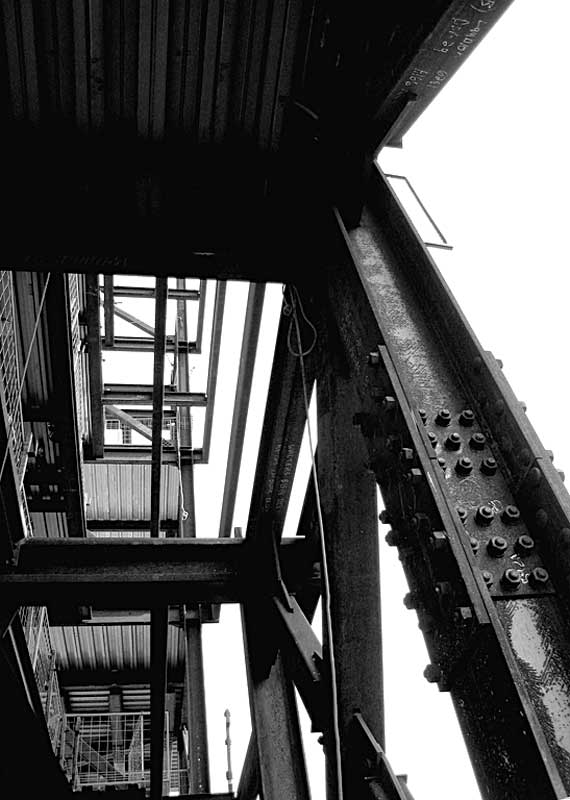

The project’s complexity was similar to performing ‘structural gymnastics.’ Photo © David Whitaker
The project’s complexity was similar to performing ‘structural gymnastics.’
Photo © David Whitaker

A clear understanding of the Ontario Building Code (OBC) was needed to define which code requirements should be upgraded and which could remain as a grandfathered condition. This took precedence to ensure safety was never compromised and fire alarm devices were maintained operational, and exits were kept clear.

A comparative look at State Street Financial Centre and 130 Bloor West projects demonstrates how specific factors can dramatically affect a project’s complexity and timing. Both involved buildings of a similar age, located in a tight downtown core with a small staging area to store materials. However, the degree of difficulty is multiplied exponentially when the building remains occupied throughout construction.

Toy Factory Lofts
The conversion of the Irwin Toy Factory, located in Toronto’s Liberty Village neighbourhood, was a catalyst for the transformation of the heavily industrialized area. Revitalization of the existing site and 26,000-m2 (279,862-sf) building provided 215 live/work units and 4000 m2 (43,056 sf) of commercial space in the neighbourhood. Focused on the public realm, the site functions as a physical gateway to Liberty Village and strengthens newly created streets.

The building was constructed at the turn of the century, and its existing Douglas fir beams, wood ceilings, exposed brick, and massive windows were modernized and integrated into the design, creating new iconic spaces. Focused on preservation, structural and historic features operate as focal points of the architecture.

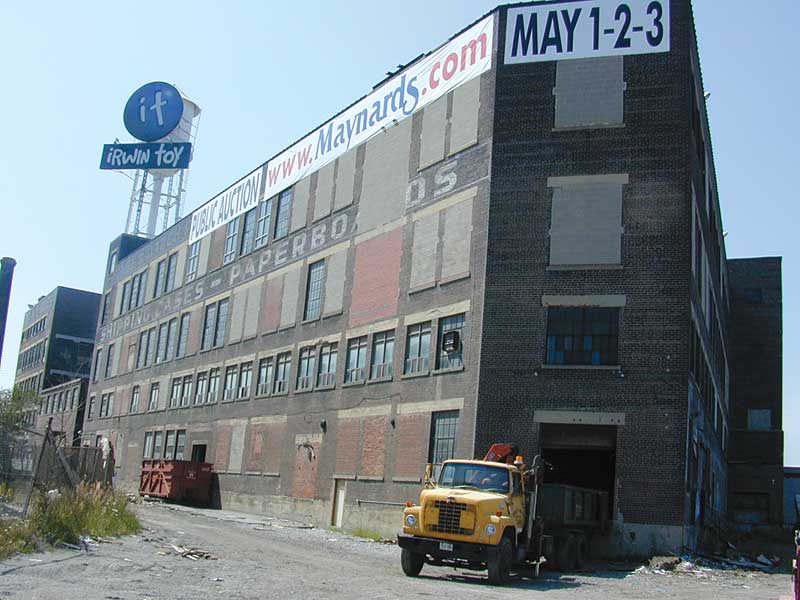

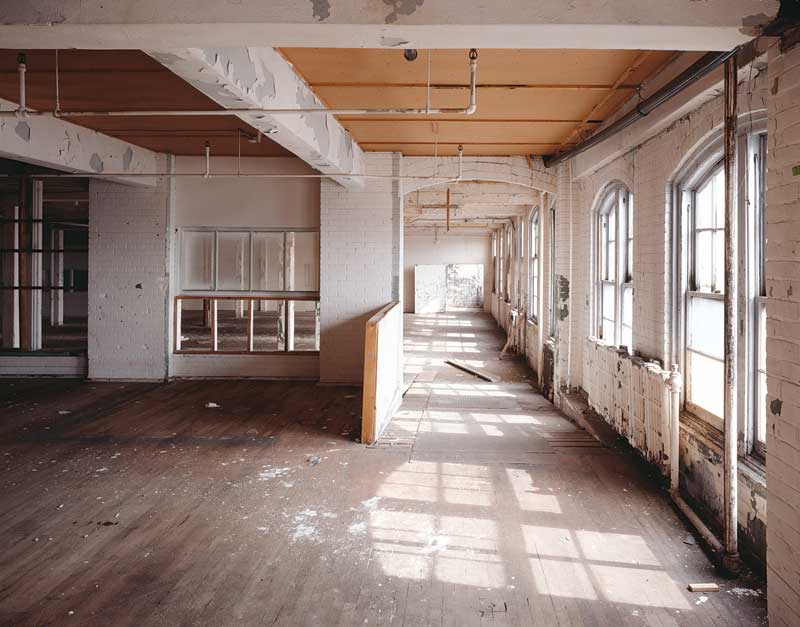

In various states of disrepair, with parts of the building structurally unsound, the challenging conversion required an intensive redevelopment strategy. Photo © Ben Rahn
In various states of disrepair, with parts of the building structurally unsound, the challenging conversion required an intensive redevelopment strategy.
Photo © Ben Rahn

In various states of disrepair, with parts of the building structurally unsound, the challenging conversion required an intensive redevelopment strategy. On an early site visit, it was discovered that the steel structure was so corrugated it could be penetrated by a human fist. A strategic combination of demolition, reconstruction, renovation, and addition was employed to maximize the site.

The award-winning design was named the 2005 Condominium Project of the Year by the Greater Toronto Home Builders’ Association and was honoured in 2009 with a Toronto Urban Design Award for Mid-rise Private Building in Context. At the time of construction, the project was the largest loft conversion ever undertaken in Toronto.

Candy Factory Lofts

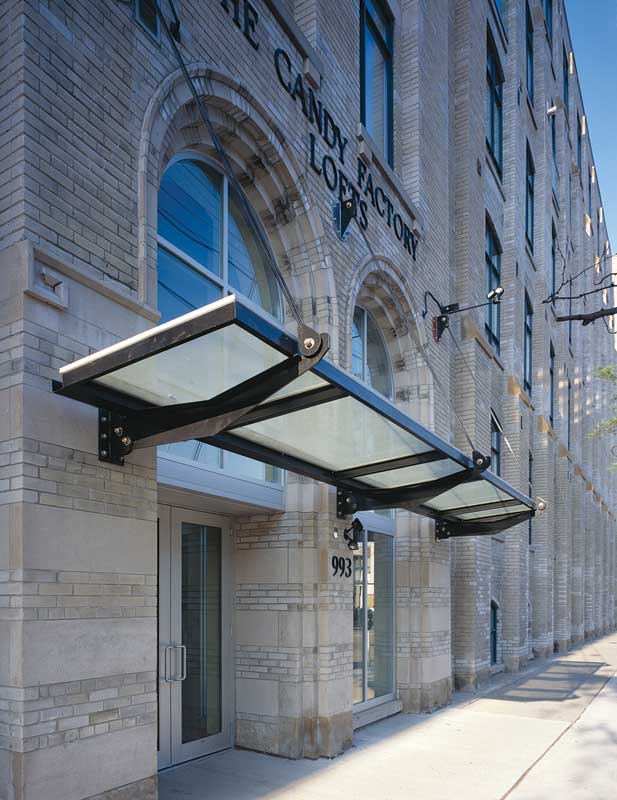

Toronto’s first true loft conversion was the transformation of Queen Street West’s Candy Factory—originally the headquarters for Ce De Candy Co Ltd., manufacturer of the popular Rockets. Heavy timber walls, 3.9-m (13-ft) ceilings, and the historic façade evoke memories of the building’s industrial past. Mill and plank construction and large windows meant the building lent itself naturally to conversion for dwelling units and live/work spaces.

The sensitive renovation translates the Candy Factory Lofts’ expansive spaces into flexible volumes of light. Photos © Robert Burley
The sensitive renovation translates the Candy Factory Lofts’ expansive spaces into flexible volumes of light.
Photos © Robert Burley

The former five-storey factory was converted into 120 residential lofts with amenity spaces. Key challenges involved specialty acoustical treatments to reduce street noise and reconstructing the original basement to accommodate two parking levels.

Similar to the Toy Factory, the project tailors a footprint from the past and creates an industrial/luxury hybrid in an urban neighbourhood ripe for intensification. The renovation translates the building’s expansive spaces into flexible volumes of light that are filled with character.

Rogers at Yonge-Dundas Square
New buildings with a short history are also well suited to adaptive reuse. Quadrangle was retained to create a vibrant headquarter for the Citytv, OMNI, and Diversity television stations on a site overlooking Yonge-Dundas square in the heart of Toronto. The five-storey building’s original purpose was to promote the city’s bid for the 2008 Olympic Games. It was adapted into new facilities for television production and broadcasting.

Production and programming environments were created and new mechanical systems designed to respond to the unique requirements of broadcasting were integrated into the building. Small for the needs of broadcasting, original floor plates were increased by 20 per cent through the rationalization of interior spaces and removal of unneeded staircases and elevators. Challenges included the co-ordination of heating and air-conditioning duct runs, sprinkler lines, lighting grids, electrical distribution, broadcast, data, and telephone cabling, and other services through an existing building designed for a different use, while ensuring acoustical integrity, camera shooting angles, and operational demands.

The historic façade evokes memories of the building’s industrial past.
The historic façade evokes memories of the building’s industrial past.

Active programming can be seen by the public on the ground and second floors, while dramatic views of the city for on-air shots by the television stations are visible from the third and fourth floors. The conversion engages the public square with floor to ceiling glazing and new high-definition screens that captivate attention in the adjacent square.

Learning from the precedents
When considering an adaptive reuse project, certain strategies can be employed to achieve success. New uses often bring new challenges.

Upfront site investigation is critical to establish an accurate understanding of what the building can offer and what the project will require. The highest degree of transparency brings the highest degree of success. Existing arrangements with the building’s tenants or leases must be researched, and a careful review of the current building codes as they apply to the existing and adapted uses and site conditions must be explored. If heritage preservation is involved, inside-out knowledge of the requirements is essential.

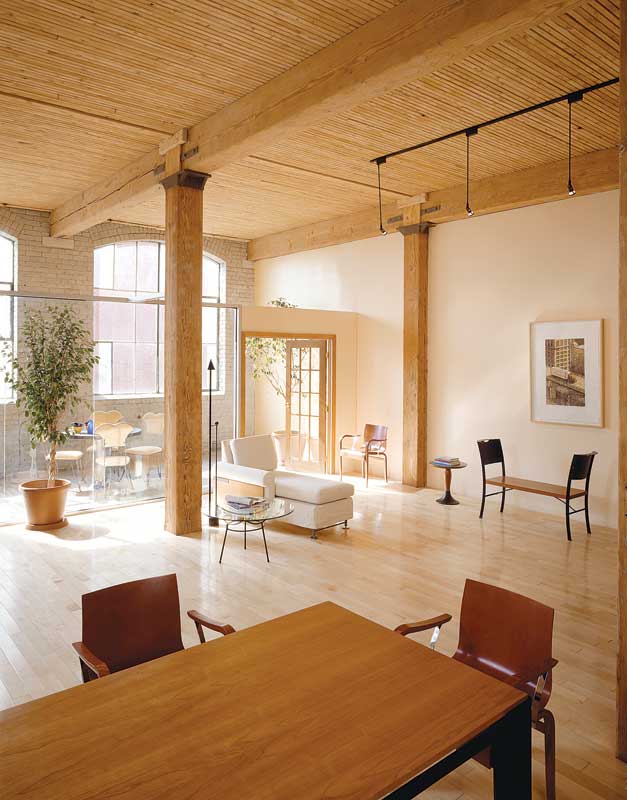

Mill and plank construction and large windows meant the building lent itself naturally to conversion for dwelling units and live/work spaces.
Mill and plank construction and large windows meant the building lent itself naturally to conversion for dwelling units and live/work spaces.

Adaptive reuse projects are complex in nature; therefore, initial planning requires a healthy contingency. Budgeting must consider all factors, including heritage preservation, code upgrades, and the adaptability of existing structures and systems. When selecting the team, retrofit experience is critical for all members, including consultants, contractors, and the client. Often more complex than new construction, adaptive reuse work may require the allocation of additional time to successfully complete the project. As inevitable unforeseen challenges arise, the key to success is flexibility and the ability to respond to new challenges as opportunities.

The most successful projects must explore early on what is really working in the bones and infrastructure of the building, and translate this information into the new purpose. The new design must listen and learn from the old, and work with the existing building rather than against it, calling on the past to create a vision for the future.
